Ransomware · Ransomworm · Worm

WannaCry - invoice_greenanimals.pdf.exe

Author: Moise Medici
Updated: 15 Feb 2026 · Completed
Difficulty: Medium
Platform: Windows
Capabilities: Command and Control C2 Communication Command Execution via Powershell Cmd Bash File Encryption Persistence Mechanisms
Tags: C++WannaCryptor

Question 16

The .wnry files use a custom extension, so they might be anything. One approach is to load them in tools that understand the file header and MIME type, or simply inspect their content. They were opened with Exeinfo, pestudio, notepad, and the file command from Linux.

b.wnry: opened with Exeinfo it shows as an image, so changing the extension to .png and opening it with the default image viewer shows the background image used once the infection is triggered.

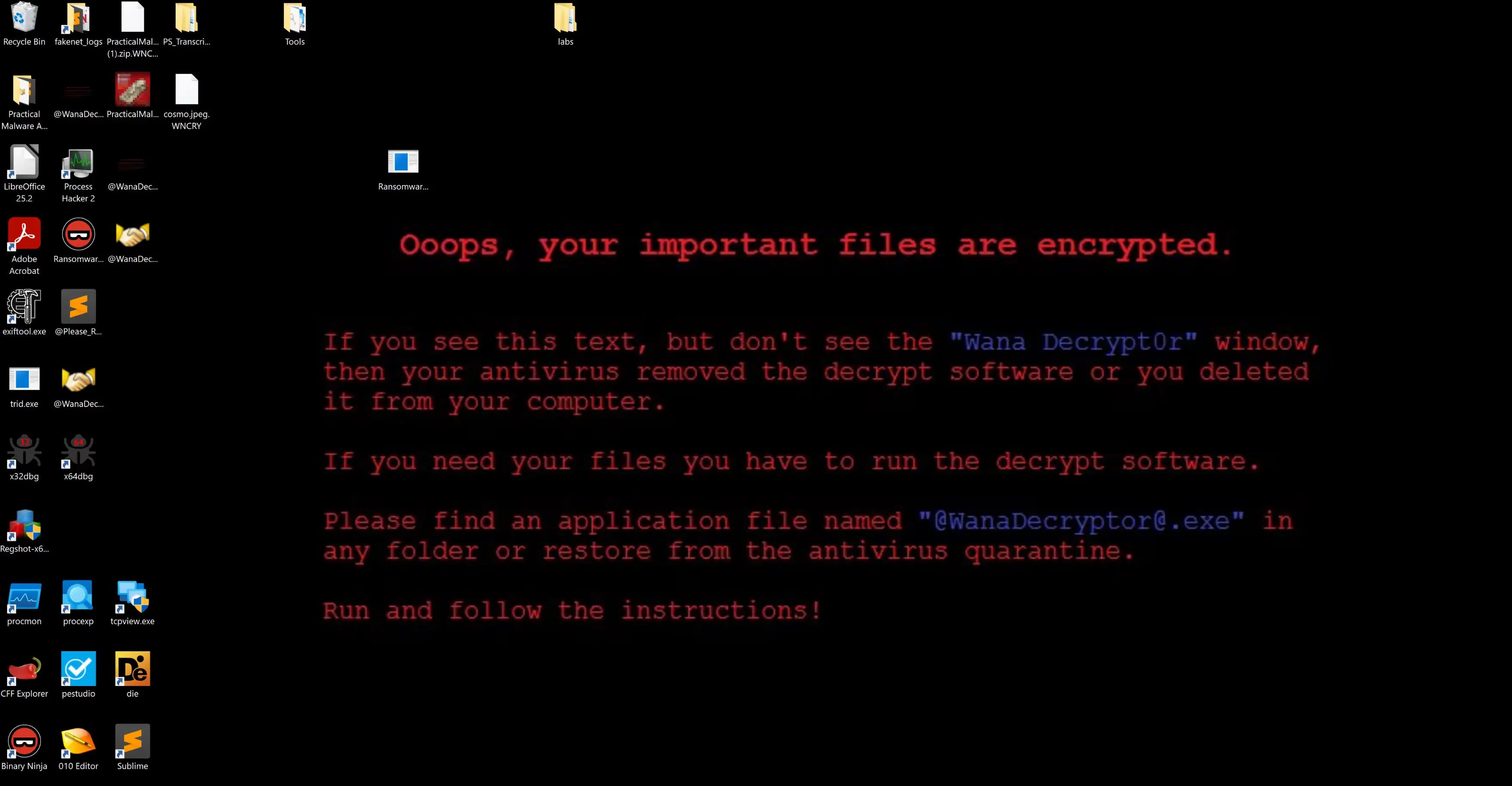

Fig. 20: The desktop background written from b.wnry, telling the victim to run @WanaDecryptor@.exe.

s.wnry: identified as an archive, and when extracted it contains the Tor and Data directories.

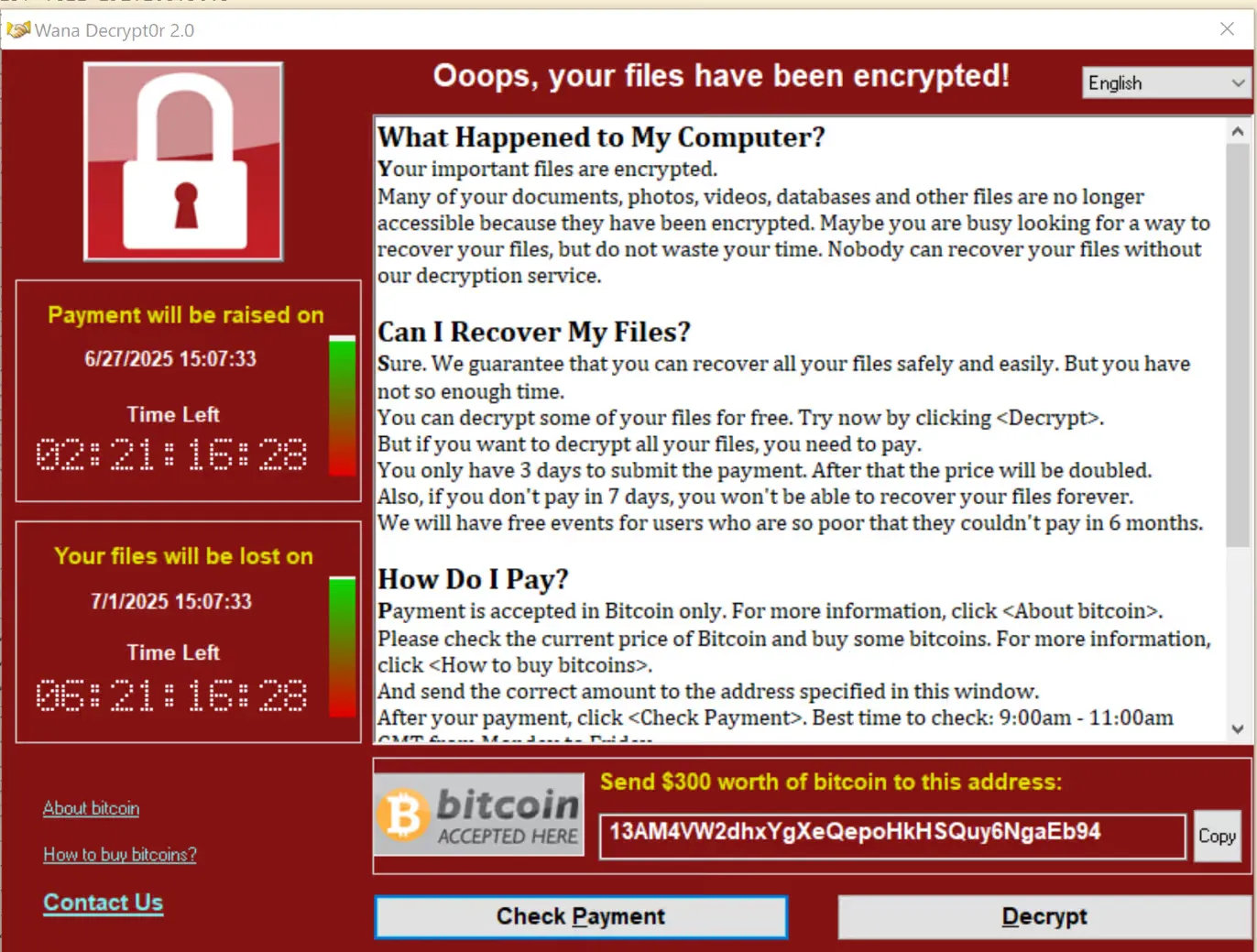

u.wnry: is another executable. Looking at the strings and resources sections of pestudio, there are clear indications that this binary spawns the payment interface. There are images in the resources section and strings like Check Payment. This is also confirmed later on in question 17, where the assembly lines showing the copy from u.wnry to WanaDecryptor in kbdlv.dll are identified.

r.wnry: is the ransom note; opening it with notepad displays the following:

1
Q:  What's wrong with my files?
2

3
A:  Ooops, your important files are encrypted. It means you will not be able to access them anymore until they are decrypted.
4
    If you follow our instructions, we guarantee that you can decrypt all your files quickly and safely!
5
    Let's start decrypting!
6

7
Q:  What do I do?
8

9
A:  First, you need to pay service fees for the decryption.
10
    Please send %s to this bitcoin address: %s
11

12
    Next, please find an application file named "%s". It is the decrypt software.
13
    Run and follow the instructions! (You may need to disable your antivirus for a while.)
14

15
Q:  How can I trust?
16

17
A:  Don't worry about decryption.
18
    We will decrypt your files surely because nobody will trust us if we cheat users.
19

20

21
*   If you need our assistance, send a message by clicking <Contact Us> on the decryptor window.

c.wnry: recognized by file as “DATA”. A simple cat shows various .onion websites that might be used for some of the activities:

1
$ cat c.wnry
2
�Cgx7ekbenv2riucmf.onion;57g7spgrzlojinas.onion;xxlvbrloxvriy2c5.onion;76jdd2ir2embyv47.onion;cwwnhwhlz52maqm7.onion;https://dist.torproject.org/torbrowser/6.5.1/tor-win32-0.2.9.10.zip

t.wnry: recognized by file as “DATA”, but opening it with cat or Notepad shows only incomprehensible data. Dragging the file to CFF Explorer and checking the hex representation shows the first few bytes as 57 41 4E 41 43 52 59, which in ASCII is WANACRY.

To better understand this data, it is useful to determine which executable uses it and how. To see how it is used, the code of tasksche.exe is reviewed where the t.wnry string appears. Looking at the address reference, the relevant code is:

1
00402125     PUSH     s_t.wnry_0040f4f4                               ; = "t.wnry"
2
0040212a     MOV      dword ptr [EBP + local_8], EBX
3
0040212d     CALL     FUN_004014a6                                    ; undefined FUN_004014a6(undefined4 param_1, undefined4 param_2);

The first step is to look at the FUN_004014a6 function and rename param_1 to t_wnry, leaving the type as undefined4. (It could be changed to a STRING type, but that sometimes creates confusion in Ghidra later on.) The first occurrence of t_wnry is in CreateFileA:

1
004014fe     PUSH     EBX                                             ; HANDLE hTemplateFile for CreateFileA
2
004014ff     PUSH     EBX                                             ; DWORD dwFlagsAndAttributes for CreateFileA
3
00401500     PUSH     0x3                                             ; DWORD dwCreationDisposition for CreateFileA
4
00401502     PUSH     EBX                                             ; LPSECURITY_ATTRIBUTES lpSecurityAttributes for
5
                                                                      ; CreateFileA
6
00401503     PUSH     0x1                                             ; DWORD dwShareMode for CreateFileA
7
00401505     PUSH     0x80000000                                      ; DWORD dwDesiredAccess for CreateFileA
8
0040150a     PUSH     dword ptr [EBP + t_wnry]                        ; LPCSTR lpFileName for CreateFileA
9
0040150d     CALL     dword ptr [->KERNEL32.DLL::CreateFileA]         ; = 0000d922
10
00401513     MOV      EDI, EAX

Note that CreateFileA takes lpFileName as an argument, which here is assigned to t_wnry. The returned file handle is moved from EAX to EDI.
From this point, to understand what else is done with the file, EDI needs to be tracked throughout the function, until it is overwritten by another value.

At line 1 it gets saved in local_24c, which will be used at line 114. In between, there are seven more times where it gets used.

1
00401515     MOV      dword ptr [EBP + local_24c], EDI
2
0040151b     CMP      EDI, -0x1
3
0040151e     JZ       LAB_004016d0
4
00401524     LEA      EAX=>local_28, [EBP + -0x24]
5
00401527     PUSH     EAX                                             ; PLARGE_INTEGER lpFileSize for GetFileSizeEx
6
00401528     PUSH     EDI                                             ; HANDLE hFile for GetFileSizeEx
7
00401529     CALL     dword ptr [->KERNEL32.DLL::GetFileSizeEx]       ; = 0000d912
8
0040152f     CMP      dword ptr [EBP + local_24], EBX
9
00401532     JG       LAB_004016d0
10
00401538     JL       LAB_00401547
11
0040153a     CMP      dword ptr [EBP + local_28], 0x6400000
12
00401541     JA       LAB_004016d0
13
                 LAB_00401547                              XREF[1]:   00401538(j)
14
00401547     PUSH     EBX
15
00401548     LEA      EAX=>local_20, [EBP + -0x1c]
16
0040154b     PUSH     EAX
17
0040154c     PUSH     0x8
18
0040154e     LEA      EAX=>local_240, [EBP + 0xfffffdc4]
19
00401554     PUSH     EAX
20
00401555     PUSH     EDI
21
00401556     CALL     dword ptr [DAT_0040f880]
22
0040155c     TEST     EAX, EAX
23
0040155e     JZ       LAB_004016d0
24
00401564     PUSH     0x8                                             ; size_t _Size for memcmp
25
00401566     PUSH     s_WANACRY!_0040eb7c                             ; void * _Buf2 for memcmp
26
0040156b     LEA      EAX=>local_240, [EBP + 0xfffffdc4]
27
00401571     PUSH     EAX                                             ; void * _Buf1 for memcmp
28
00401572     CALL     MSVCRT.DLL::memcmp                              ; int memcmp(void * _Buf1, void * _Buf2, size_t
29
                                                                      ; _Size)
30
00401577     ADD      ESP, 0xc
31
0040157a     TEST     EAX, EAX
32
0040157c     JNZ      LAB_004016d0
33
00401582     PUSH     EBX
34
00401583     LEA      EAX=>local_20, [EBP + -0x1c]
35
00401586     PUSH     EAX
36
00401587     PUSH     0x4
37
00401589     LEA      EAX=>local_248, [EBP + 0xfffffdbc]
38
0040158f     PUSH     EAX
39
00401590     PUSH     EDI
40
00401591     CALL     dword ptr [DAT_0040f880]
41
00401597     TEST     EAX, EAX
42
00401599     JZ       LAB_004016d0
43
0040159f     MOV      EAX, 0x100
44
004015a4     CMP      dword ptr [EBP + local_248], EAX
45
004015aa     JNZ      LAB_004016d0
46
004015b0     PUSH     EBX
47
004015b1     LEA      ECX=>local_20, [EBP + -0x1c]
48
004015b4     PUSH     ECX
49
004015b5     PUSH     EAX
50
004015b6     PUSH     dword ptr [ESI + 0x4c8]
51
004015bc     PUSH     EDI
52
004015bd     CALL     dword ptr [DAT_0040f880]
53
004015c3     TEST     EAX, EAX
54
004015c5     JZ       LAB_004016d0
55
004015cb     PUSH     EBX
56
004015cc     LEA      EAX=>local_20, [EBP + -0x1c]
57
004015cf     PUSH     EAX
58
004015d0     PUSH     0x4
59
004015d2     LEA      EAX=>local_244, [EBP + 0xfffffdc0]
60
004015d8     PUSH     EAX
61
004015d9     PUSH     EDI
62
004015da     CALL     dword ptr [DAT_0040f880]
63
004015e0     TEST     EAX, EAX
64
004015e2     JZ       LAB_004016d0
65
004015e8     PUSH     EBX
66
004015e9     LEA      EAX=>local_20, [EBP + -0x1c]
67
004015ec     PUSH     EAX
68
004015ed     PUSH     0x8
69
004015ef     LEA      EAX=>local_238, [EBP + 0xfffffdcc]
70
004015f5     PUSH     EAX
71
004015f6     PUSH     EDI
72
004015f7     CALL     dword ptr [DAT_0040f880]
73
004015fd     TEST     EAX, EAX
74
004015ff     JZ       LAB_004016d0
75
00401605     CMP      dword ptr [EBP + local_234], EBX
76
0040160b     JG       LAB_004016d0
77
00401611     JL       LAB_00401623
78
00401613     CMP      dword ptr [EBP + local_238], 0x6400000
79
0040161d     JA       LAB_004016d0
80
                 LAB_00401623                              XREF[1]:   00401611(j)
81
00401623     LEA      EAX=>local_30, [EBP + -0x2c]
82
00401626     PUSH     EAX
83
00401627     LEA      EAX=>local_230, [EBP + 0xfffffdd4]
84
0040162d     PUSH     EAX
85
0040162e     PUSH     dword ptr [EBP + local_248]
86
00401634     PUSH     dword ptr [ESI + 0x4c8]
87
0040163a     LEA      ECX, [ESI + 0x4]
88
0040163d     CALL     FUN_004019e1                                    ; undefined FUN_004019e1(undefined4 param_1,
89
                                                                      ; undefined4 param_2, undefined4 param_3, undefined4
90
                                                                      ; param_4)
91
00401642     TEST     EAX, EAX
92
00401644     JZ       LAB_004016d0
93
0040164a     LEA      EDI, [ESI + 0x54]
94
0040164d     PUSH     0x10
95
0040164f     PUSH     dword ptr [EBP + local_30]
96
00401652     PUSH     dword ptr [PTR_DAT_0040f578]                    ; = 0040f914
97
00401658     LEA      EAX=>local_230, [EBP + 0xfffffdd4]
98
0040165e     PUSH     EAX
99
0040165f     MOV      ECX, EDI
100
00401661     CALL     FUN_00402a76                                    ; undefined FUN_00402a76(undefined4 param_1,
101
                                                                      ; undefined4 param_2, undefined4 param_3, undefined4
102
                                                                      ; param_4)
103
00401666     PUSH     dword ptr [EBP + local_238]                     ; SIZE_T dwBytes for GlobalAlloc
104
0040166c     PUSH     EBX                                             ; UINT uFlags for GlobalAlloc
105
0040166d     CALL     dword ptr [->KERNEL32.DLL::GlobalAlloc]         ; = 0000d874
106
00401673     MOV      dword ptr [EBP + local_2c], EAX
107
00401676     CMP      EAX, EBX
108
00401678     JZ       LAB_004016d0
109
0040167a     PUSH     EBX
110
0040167b     LEA      EAX=>local_20, [EBP + -0x1c]
111
0040167e     PUSH     EAX
112
0040167f     PUSH     dword ptr [EBP + local_28]
113
00401682     PUSH     dword ptr [ESI + 0x4c8]
114
00401688     PUSH     dword ptr [EBP + local_24c]
115
0040168e     CALL     dword ptr [DAT_0040f880]
116
00401694     TEST     EAX, EAX
117
00401696     JZ       LAB_004016d0
118
00401698     MOV      EAX, dword ptr [EBP + local_20]
119
0040169b     CMP      EAX, EBX
120
0040169d     JZ       LAB_004016d0
121
0040169f     CMP      EBX, dword ptr [EBP + local_234]
122
004016a5     JG       LAB_004016b1
123
004016a7     JL       LAB_004016d0
124
004016a9     CMP      EAX, dword ptr [EBP + local_238]
125
004016af     JC       LAB_004016d0
126
                 LAB_004016b1                              XREF[1]:   004016a5(j)
127
004016b1     PUSH     0x1
128
004016b3     PUSH     EAX
129
004016b4     MOV      EBX, dword ptr [EBP + local_2c]
130
004016b7     PUSH     EBX
131
004016b8     PUSH     dword ptr [ESI + 0x4c8]
132
004016be     MOV      ECX, EDI
133
004016c0     CALL     FUN_00403a77                                    ; undefined FUN_00403a77(undefined4 param_1,
134
                                                                      ; undefined4 param_2, undefined4 param_3, undefined4
135
                                                                      ; param_4)
136
004016c5     MOV      EAX, dword ptr [EBP + param_2]
137
004016c8     MOV      ECX, dword ptr [EBP + local_238]
138
004016ce     MOV      dword ptr [EAX], ECX
139
                 LAB_004016d0                              XREF[18]:  0040151e(j), 00401532(j),
140
                                                                       00401541(j), 0040155e(j),
141
                                                                       0040157c(j), 00401599(j),
142
                                                                       004015aa(j), 004015c5(j),
143
                                                                       004015e2(j), 004015ff(j),
144
                                                                       0040160b(j), 0040161d(j),
145
                                                                       00401644(j), 00401678(j),
146
                                                                       00401696(j), 0040169d(j),
147
                                                                       004016a7(j), 004016af(j)
148
004016d0     PUSH     -0x1
149
004016d2     LEA      EAX=>local_14, [EBP + -0x10]
150
004016d5     PUSH     EAX
151
004016d6     CALL     MSVCRT.DLL::_local_unwind2                      ; undefined _local_unwind2()
152
004016db     POP      ECX
153
004016dc     POP      ECX
154
004016dd     MOV      EAX, EBX
155
004016df     JMP      LAB_004016f9

Currently the problem is what those DAT_xxxx strings are, for example:

1
00401554     PUSH     EAX
2
00401555     PUSH     EDI
3
00401556     CALL     dword ptr [DAT_0040f880]

And this is actually pretty easy to find. Double‑clicking on any of the DAT_xxxx strings, for example DAT_0040f880, leads to where this object is referenced:

1
                 DAT_0040f880                              XREF[8]:   FUN_004014a6:00401556(R),
2
                                                                       FUN_004014a6:00401591(R),
3
                                                                       FUN_004014a6:004015bd(R),
4
                                                                       FUN_004014a6:004015da(R),
5
                                                                       FUN_004014a6:004015f7(R),
6
                                                                       FUN_004014a6:0040168e(R),
7
                                                                       FUN_0040170a:0040176b(W),
8
                                                                       FUN_0040170a:004017af(R)
9
0040f880     undefi   00000000h

Note at line 7 that one of the functions (FUN_0040170a) writes to it (W), rather than reading (R). Double‑clicking on the function shows its code, specifically where the DAT_ objects are initialized:

1
00401727     PUSH     s_kernel32.dll_0040ebe8                          ; LPCSTR lpLibFileName for LoadLibraryA
2
0040172c     CALL     dword ptr [->KERNEL32.DLL::LoadLibraryA]         ; = 0000d864
3
00401732     MOV      EDI, EAX
4
00401734     CMP      EDI, EBX
5
00401736     JZ       LAB_004017d8
6
0040173c     PUSH     ESI
7
0040173d     MOV      ESI, dword ptr [->KERNEL32.DLL::GetProcAddress]  ; = 0000d852
8
00401743     PUSH     s_CreateFileW_0040ebdc                           ; LPCSTR lpProcName for GetProcAddress
9
00401748     PUSH     EDI                                              ; HMODULE hModule for GetProcAddress
10
00401749     CALL     ESI=>KERNEL32.DLL::GetProcAddress
11
0040174b     PUSH     s_WriteFile_0040ebd0                             ; LPCSTR lpProcName for GetProcAddress
12
00401750     PUSH     EDI                                              ; HMODULE hModule for GetProcAddress
13
00401751     MOV      [DAT_0040f878], EAX
14
00401756     CALL     ESI=>KERNEL32.DLL::GetProcAddress
15
00401758     PUSH     s_ReadFile_0040ebc4                              ; LPCSTR lpProcName for GetProcAddress
16
0040175d     PUSH     EDI                                              ; HMODULE hModule for GetProcAddress
17
0040175e     MOV      [DAT_0040f87c], EAX
18
00401763     CALL     ESI=>KERNEL32.DLL::GetProcAddress
19
00401765     PUSH     s_MoveFileW_0040ebb8                             ; LPCSTR lpProcName for GetProcAddress
20
0040176a     PUSH     EDI                                              ; HMODULE hModule for GetProcAddress
21
0040176b     MOV      [DAT_0040f880], EAX
22
00401770     CALL     ESI=>KERNEL32.DLL::GetProcAddress
23
00401772     PUSH     s_MoveFileExW_0040ebac                           ; LPCSTR lpProcName for GetProcAddress
24
00401777     PUSH     EDI                                              ; HMODULE hModule for GetProcAddress
25
00401778     MOV      [DAT_0040f884], EAX
26
0040177d     CALL     ESI=>KERNEL32.DLL::GetProcAddress
27
0040177f     PUSH     s_DeleteFileW_0040eba0                           ; LPCSTR lpProcName for GetProcAddress
28
00401784     PUSH     EDI                                              ; HMODULE hModule for GetProcAddress
29
00401785     MOV      [DAT_0040f888], EAX
30
0040178a     CALL     ESI=>KERNEL32.DLL::GetProcAddress
31
0040178c     PUSH     s_CloseHandle_0040eb94                           ; LPCSTR lpProcName for GetProcAddress
32
00401791     PUSH     EDI                                              ; HMODULE hModule for GetProcAddress
33
00401792     MOV      [DAT_0040f88c], EAX
34
00401797     CALL     ESI=>KERNEL32.DLL::GetProcAddress
35
00401799     CMP      dword ptr [DAT_0040f878], EBX
36
0040179f     MOV      [DAT_0040f890], EAX

Starting from the top, LoadLibrary is called. This syscall loads a module so that the process can use its functionality. This is commonly used to avoid loading the functionalities directly and hide from tools like pestudio, see the Load Library page for more info on this. In this case the module loaded is kernel32.dll.

At this point, at line 3, EDI contains the loaded module.

Following that, GetProcAddress is called:

1
00401743     PUSH     s_CreateFileW_0040ebdc                          ; LPCSTR lpProcName for GetProcAddress
2
00401748     PUSH     EDI                                             ; HMODULE hModule for GetProcAddress
3
00401749     CALL     ESI=>KERNEL32.DLL::GetProcAddress
4
0040174b     PUSH     s_WriteFile_0040ebd0                            ; LPCSTR lpProcName for GetProcAddress
5
00401750     PUSH     EDI                                             ; HMODULE hModule for GetProcAddress
6
00401751     MOV      [DAT_0040f878], EAX

GetProcAddress 14 requires a handle to a module as first argument (EDI) and the name of the process to get the address of (s_CreateFileW):

1
FARPROC GetProcAddress(
2
  [in] HMODULE hModule,
3
  [in] LPCSTR  lpProcName
4
);

Once called it returns the address, which is saved in DAT_. Looking back at the original function, this adds up since the DAT_ is called by dereferencing the pointer:

1
0040168e     CALL     dword ptr [DAT_0040f880]

So all the DAT_ in this function are renamed from DAT_xxxx to DAT_<syscall_name>, for example DAT_WriteFile. The function has also been renamed from FUN_0040170a to assign_dat_fileop.

With a clearer picture of what function FUN_004014a6 calls, its purpose becomes easier to approach. It starts by calling the CreateFile call which in this case does not create the file. This can be understood based on two factors:

Intuition: it does not make sense to have a CreateFile followed by a GetFileSize and a ReadFile, mostly because the file has not been written yet. So the first one will return 0 as well as the second.
CreateFile, based on the Microsoft documentation 15 has one parameter called dwCreationDisposition which in this case is set to 3. This is translated to OPEN_EXISTING, which is described by Microsoft as: “Opens a file or device, only if it exists. If the specified file or device does not exist, the function fails and the last-error code is set to ERROR_FILE_NOT_FOUND (2).” So in order for the program to continue, the file must exist already.

The first thing done while reading the file is to compare the first bytes with the WANCRY! bytes mentioned earlier.

At this point the analysis becomes less straightforward, mostly due to the three functions that are called while reading the file. The functions are:

FUN_004019e1
FUN_00402a76
FUN_00403a77

The last two are the “easiest” to guess; they likely implement encryption/decryption routines. The reason for this assumption is that they are full of loops with modulo operators (%), byte shifts (<<) and generally more mathematical operations.

The first one is probably the best place to start:

1
                 *******************************************************
2
                 *                      FUNCTION                       *
3
                 *******************************************************
4
                 undefined FUN_004019e1(undefined4 param_1, undefi
5
                    assume FS_OFFSET = 0xffdff000
6
   undefined       AL:1         <RETURN>
7
   undefined4      Stack[0x4]:4 param_1                            XREF[2]:   004019fc(R),
8
                                                                              00401a26(R)
9
   undefined4      Stack[0x8]:4 param_2                            XREF[3]:   004019f8(*),
10
                                                                              00401a23(R),
11
                                                                              00401a34(R)
12
   undefined4      Stack[0xc]:4 param_3                            XREF[1]:   00401a29(R)
13
   undefined4      Stack[0x10]  param_4                            XREF[1]:   00401a31(R)
14
                 FUN_004019e1                              XREF[1]:   FUN_004014a6:0040163d(c)
15
004019e1     PUSH     EBP
16
004019e2     MOV      EBP, ESP
17
004019e4     PUSH     ESI
18
004019e5     MOV      ESI, ECX
19
004019e7     PUSH     EDI
20
004019e8     CMP      dword ptr [ESI + 0x8], 0x0
21
004019ec     JZ       LAB_00401a19
22
004019ee     LEA      EDI, [ESI + 0x10]
23
004019f1     PUSH     EDI                                             ; LPCRITICAL_SECTION lpCriticalSection for
24
                                                                      ; EnterCriticalSection
25
004019f2     CALL     dword ptr [->KERNEL32.DLL::EnterCriticalSectio  ; = 0000d9a2
26
004019f8     LEA      EAX=>param_2, [EBP + 0xc]
27
004019fb     PUSH     EAX
28
004019fc     PUSH     dword ptr [EBP + param_1]
29
004019ff     PUSH     0x0
30
00401a01     PUSH     0x1
31
00401a03     PUSH     0x0
32
00401a05     PUSH     dword ptr [ESI + 0x8]
33
00401a08     CALL     dword ptr [DAT_0040f8a4]
34
00401a0e     TEST     EAX, EAX
35
00401a10     PUSH     EDI                                             ; LPCRITICAL_SECTION lpCriticalSection for
36
                                                                      ; LeaveCriticalSection
37
00401a11     JNZ      LAB_00401a1d
38
00401a13     CALL     dword ptr [->KERNEL32.DLL::LeaveCriticalSectio  ; = 0000d98a
39
                 LAB_00401a19                              XREF[1]:   004019ec(j)
40
00401a19     XOR      EAX, EAX
41
00401a1b     JMP      LAB_00401a3f
42
                 LAB_00401a1d                              XREF[1]:   00401a11(j)
43
00401a1d     CALL     dword ptr [->KERNEL32.DLL::LeaveCriticalSectio  ; = 0000d98a
44
00401a23     PUSH     dword ptr [EBP + param_2]                       ; size_t _Size for memcpy
45
00401a26     PUSH     dword ptr [EBP + param_1]                       ; void * _Src for memcpy
46
00401a29     PUSH     dword ptr [EBP + param_3]                       ; void * _Dst for memcpy
47
00401a2c     CALL     MSVCRT.DLL::memcpy                              ; void * memcpy(void * _Dst, void * _Src, size_t
48
                                                                      ; _Size)

What this function does is use EnterCriticalSection 16 and LeaveCriticalSection to get and release a critical section object, which is an object that can be held by a single thread to ensure that two different threads are not able to access the same shared memory area.

Once this access is granted, another DAT_ object is called. Using the same method as before shows that DAT_0040f8a4 is written in FUN_00401a45, along with other variables. These are renamed as follows:

DAT_CryptAcquireContext
DAT_CryptImportKey
DAT_CryptDestroyKey
DAT_CryptEncrypt
DAT_CryptDecrypt
DAT_CryptGenKey

And in the function, DAT_CryptDecrypt is called on the critical section object retrieved previously:

1
004019f2     CALL     dword ptr [->KERNEL32.DLL::EnterCriticalSectio  ; = 0000d9a2
2
004019f8     LEA      EAX=>param_2, [EBP + 0xc]
3
004019fb     PUSH     EAX
4
004019fc     PUSH     dword ptr [EBP + param_1]
5
004019ff     PUSH     0x0
6
00401a01     PUSH     0x1
7
00401a03     PUSH     0x0
8
00401a05     PUSH     dword ptr [ESI + 0x8]
9
00401a08     CALL     dword ptr [DAT_CryptDecrypt]

The current guess is that since it is decrypting a shared memory area, the area is t.wnry, which is an encrypted file. The reason for this guess is the proximity of the calls. The file being read is t.wnry, which has a custom signature and no recognizable content.

In Ghidra the renaming of functions starts to give them names based on what they seem to be doing. The process followed is:

Finding the reference to the string t_wnry.
Finding the first function that calls it, previously identified as FUN_004014a6, then opening it and examining each function one by one.

The full rename is:

FUN_004014a6 → t_wnry_ops
FUN_004019e1 → UseCryptDecrypt
FUN_00402a76 → MathThings → this and all the below ones are purposely vague, mostly because their behaviour is not immediately clear
FUN_00403a77 → LotOfMath
FUN_00403797 → MathThings2
FUN_00403a28 → RaiseException
FUN_0040350f → MathThings3

This might seem like a pointless renaming, but looking at the decompiled code now, some steps make more sense:

1
iVar2 = UseCryptDecrypt(*(in_ECX + 0x4c8), local_248, local_230, &local_30);
2
if (iVar2 != 0) {
3
    MathThings(local_230, PTR_DAT_0040f578, local_30, 0x10);
4
    local_2c = GlobalAlloc(0, local_238);

This means that if the return value of UseCryptDecrypt is different from 0, some calculations are performed with two of the values used by the first function (local_230 and local_30). What UseCryptDecrypt returns does not really matter, since it is always used as a control variable for returns of operations.

The first parameter of the function is a pointer to the current value of ESI + 0x4c8, which is populated in one of the ReadFile calls just above, since it is the second argument of the call, lpBuffer 17:

1
004015b6     PUSH     dword ptr [ESI + 0x4c8]
2
004015bc     PUSH     EDI
3
004015bd     CALL     dword ptr [DAT_ReadFile]

The content of ESI + 0x4c8 is built progressively. The very first ReadFile is used to compare the first 8 bytes (third argument, nNumberOfBytesToRead of ReadFile) with WANACRY!, the header that was found previously. This is likely an “integrity” check:

1
0040154c     PUSH     0x8
2
0040154e     LEA      EAX=>local_240, [EBP + 0xfffffdc4]
3
00401554     PUSH     EAX
4
00401555     PUSH     EDI
5
00401556     CALL     dword ptr [DAT_ReadFile]
6
0040155c     TEST     EAX, EAX
7
0040155e     JZ       end
8
00401564     PUSH     0x8                                             ; size_t _Size for memcmp
9
00401566     PUSH     s_WANACRY!_0040eb7c                             ; void * _Buf2 for memcmp
10
0040156b     LEA      EAX=>local_240, [EBP + 0xfffffdc4]

Next it reads 4 more bytes:

1
00401582     PUSH     EBX
2
00401583     LEA      EAX=>local_20, [EBP + -0x1c]
3
00401586     PUSH     EAX
4
00401587     PUSH     0x4
5
00401589     LEA      EAX=>local_248, [EBP + 0xfffffdbc]
6
0040158f     PUSH     EAX
7
00401590     PUSH     EDI
8
00401591     CALL     dword ptr [DAT_ReadFile]

After the ReadFile it is compared to 0x100 (256 decimal):

1
00401597     TEST     EAX, EAX
2
00401599     JZ       end
3
0040159f     MOV      EAX, 0x100
4
004015a4     CMP      dword ptr [EBP + local_248], EAX
5
004015aa     JNZ      end

If it is successful, this value (0x100) is passed to UseCryptDecrypt as the second parameter.

Lastly, it reads 256 bytes which will be saved in ESI + 0x4c8:

1
0040159f     MOV      EAX, 0x100
2
004015a4     CMP      dword ptr [EBP + local_248], EAX
3
004015aa     JNZ      end
4
004015b0     PUSH     EBX
5
004015b1     LEA      ECX=>local_20, [EBP + -0x1c]
6
004015b4     PUSH     ECX
7
004015b5     PUSH     EAX
8
004015b6     PUSH     dword ptr [ESI + 0x4c8]
9
004015bc     PUSH     EDI
10
004015bd     CALL     dword ptr [DAT_ReadFile]

To see the content described above, t.wnry can be opened in HxD:

Fig. 22: t.wnry in HxD, opening with the WANACRY! magic value followed by 00 01 00 00.

So the first argument to UseCryptDecrypt is the encrypted content of t.wnry, or part of it. The second argument is 256. The third and fourth arguments of UseCryptDecrypt are only initialized but never used before the call:

1
undefined local_230 [512];
2
undefined4 local_30;

UseCryptDecrypt calls CryptDecrypt 18 , which has the following signature:

1
BOOL CryptDecrypt(
2
  [in]      HCRYPTKEY  hKey,
3
  [in]      HCRYPTHASH hHash,
4
  [in]      BOOL       Final,
5
  [in]      DWORD      dwFlags,
6
  [in, out] BYTE       *pbData,
7
  [in, out] DWORD      *pdwDataLen
8
);

It is called as follow:

1
004019f8     LEA      EAX=>param_2, [EBP + 0xc]
2
004019fb     PUSH     EAX
3
004019fc     PUSH     dword ptr [EBP + param_1]
4
004019ff     PUSH     0x0
5
00401a01     PUSH     0x1
6
00401a03     PUSH     0x0
7
00401a05     PUSH     dword ptr [ESI + 0x8]
8
00401a08     CALL     dword ptr [DAT_CryptDecrypt]

So param_2 (256) is pdwDataLen, while param_1 is pbData. Respectively, param_2 will contain the length of the decrypted data and param_1 the decrypted data. The content of param_1 is then copied into param_3 (which is local_230), using memcpy 19.

1
00401a23     PUSH     dword ptr [EBP + param_2]                       ; size_t _Size for memcpy
2
00401a26     PUSH     dword ptr [EBP + param_1]                       ; void * _Src for memcpy
3
00401a29     PUSH     dword ptr [EBP + param_3]                       ; void * _Dst for memcpy
4
00401a2c     CALL     MSVCRT.DLL::memcpy                              ; void * memcpy(void * _Dst, void * _Src, size_t

local_230 is now the decrypted content and it is used in MathThings. local_230 is therefore renamed to decrypted_content.

param_4, which is local_30, gets the value of param_2 at the end of the function:

1
00401a31     MOV      EAX, dword ptr [EBP + param_4]
2
00401a34     MOV      ECX, dword ptr [EBP + param_2]
3
00401a37     ADD      ESP, 0xc
4
00401a3a     MOV      dword ptr [EAX], ECX

Because of that, local_30 is renamed to sizeof_decrypted_content.

Stepping back for a second, the analysis so far shows that the first 256 bytes of the file are decrypted, which is a very small portion of the file.

Fig. 23: The first 256 bytes of t.wnry selected in HxD, a small fraction of the whole file.

The decrypted content is used in a math-related function. After that, the file is read till the end:

1
0040167b     LEA      EAX=>local_20, [EBP + -0x1c]
2
0040167e     PUSH     EAX
3
0040167f     PUSH     dword ptr [EBP + local_28]
4
00401682     PUSH     dword ptr [ESI + 0x4c8]
5
00401688     PUSH     dword ptr [EBP + local_24c]
6
0040168e     CALL     dword ptr [DAT_ReadFile]

This happens because local_28, which defines the size of bytes to read, is initialized in GetFileSizeEx:

1
00401524     LEA      EAX=>local_28, [EBP + -0x24]
2
00401527     PUSH     EAX                                             ; PLARGE_INTEGER lpFileSize for GetFileSizeEx
3
00401528     PUSH     EDI                                             ; HANDLE hFile for GetFileSizeEx
4
00401529     CALL     dword ptr [->KERNEL32.DLL::GetFileSizeEx]       ; = 0000d912

The content is saved in ESI + 0x4c8, which is then sent to the LotOfMath function. A plausible working hypothesis is that the first 256 bytes read are an encryption key. In that case, this call:

1
0040164d     PUSH     0x10
2
0040164f     PUSH     dword ptr [EBP + sizeof_decrypted_content]
3
00401652     PUSH     dword ptr [PTR_DAT_0040f578]                    ; = 0040f914
4
00401658     LEA      EAX=>decrypted_content, [EBP + 0xfffffdd4]
5
0040165e     PUSH     EAX
6
0040165f     MOV      ECX, EDI
7
00401661     CALL     MathThings                                      ; undefined MathThings(undefined4 param_1,

is consistent with key-related processing.

One thing that might give it away is that MathThings is very likely using AES. The clue is in the only clearly recognizable element in MathThings. Scrolling through the function shows a call to DAT_004089fc, which, when double‑clicked in Ghidra, looks like this:

1
                 DAT_004089fc                              XREF[28]:  MathThings:00402cca(R),
2
                                                                       MathThings:00402cdf(R),
3
                                                                       MathThings:00402ce6(R),
4
                                                                       ...
5
                                                                       FUN_00402e7e:0040318a(R),
6
                                                                       FUN_00402e7e:0040319f(R),
7
                                                                       [more]
8
004089fc     ??       63h    c
9
004089fd     ??       7Ch    |
10
004089fe     ??       77h    w
11
004089ff     ??       7Bh    {
12
< a lot of other bytes here>

Searching online for the first few bytes (63, 7C, 77) leads directly to the Rijndael S-box used in AES 20. This is renamed to rijndael_1 to make it easier to spot in other calls; note that it is referenced in at least one other function in the XREF array in the definition section.

MathThings can be renamed to AESDecryptMaybeKey.

Similarly, MathThings2 contains some variables:

DAT_0040a3fc
DAT_0040a7fc
DAT_00409ffc
DAT_00409bfc

These look like different permutations of the same set of bytes:

DAT_0040a3fc → F4 51 50 A7
DAT_0040a7fc → 51 50 A7 F4
DAT_00409ffc → A7 F4 51 50
DAT_00409bfc → 50 A7 F4 51

Searching for a larger part of the first sequence, F4 51 50 A7 41 7E 53 65 17 1A C3 A4 27 3A 96 5E, leads to 21, which defines them as reverse tables (decryption lookup tables). At this point MathThings2 is renamed to AESDecryptData and the various DAT above as decrypt_table.

Lastly, in MathThings3 there are four more lookup tables similar to AESDecryptMaybeKey. They are renamed as follows:

DAT_004093fc → rijndael_2
DAT_004097fc → rijndael_3
DAT_00408ffc → rijndael_4
DAT_00408bfc → rijndael_5

The function is then likely going to encrypt something, so it is renamed to AESEncryptSomething. LotOfMath is renamed as well, to AESFunc.

The function’s behaviour at this point is reasonably clear; the remaining task is to check what is returned. There are two returned values, one via EAX:

1
004016dd 8b  c3           MOV        EAX ,EBX
2
004016df eb  18           JMP        LAB_004016f9

and the other by changing the value of the pointer given as the second argument of the function. Looking at the disassembled code:

1
local_2c = GlobalAlloc(0, local_238);
2

3
if (local_2c != (HGLOBAL)0x0) {
4
    iVar2 = (*DAT_ReadFile)(
5
        hFile,
6
        *(undefined4 *)(in_ECX + 0x4c8),
7
        local_28,
8
        local_20,
9
        0
10
    );
11

12
    pvVar1 = local_2c;
13

14
    if (
15
        ((iVar2 != 0) && (local_20[0] != 0)) &&
16
        (
17
            (0x7fffffff < local_234) ||
18
            (
19
                ((int)local_234 < 1) &&
20
                (local_238 <= local_20[0])
21
            )
22
        )
23
    ) {
24
        AESFunc(
25
            *(undefined4 *)(in_ECX + 0x4c8),
26
            local_2c,
27
            local_20[0],
28
            1
29
        );
30

31
        *param_2 = local_238;
32
        pvVar3 = pvVar1;
33
        ... skipped to reduce the code snip
34

35
return pvVar3;

param_2 is returned as the value of local_238, which is used earlier in GlobalAlloc as the second argument. According to the documentation, this is the size in bytes to allocate in memory 22. What is returned by GlobalAlloc is a handle to the space that has been allocated. This is saved in local_2c and then moved into pvVar1, then into pvVar3, which is returned.

At this stage, it is useful to decide where to place the breakpoints and why everything done so far is important. A breakpoint after the t_wnry_ops function call will allow capture of:

The address of the decrypted payload (in EAX)
The size in bytes of the payload

The breakpoints are set at:

0040163D, which is the first parameter of the GlobalAlloc function and represents the hexadecimal size in bytes. Once the line is executed the stack shows the amount of space reserved.
00402132, which is the end of the t_wnry_ops function.

When the executable reaches the first breakpoint, stepping over to the next instruction adds to the stack the value 0x10000, which converted to decimal is 65536 bytes.

Fig. 24: The breakpoint before GlobalAlloc, where the stack now holds 0x10000, which is 65536 bytes.

At the second breakpoint, the value of EAX is set to the address where the file has been decrypted and copied: 028A1490 (this value can differ). Following this address in a dump window shows the memory area filled with data. The first bytes are 4D 5A, which is the magic value of a Windows executable.

Fig. 25: At the second breakpoint EAX points to 028A1490, where the dump shows the decrypted content starting with 4D 5A.

The last step is to highlight the 10000 bytes of data from the beginning and dump them to a file. To help determine how much to highlight, the dump view shows something like:

1
Dump: 028A1490 → 028A1545 (0x000000B6 bytes)

Highlighting continues until the value in parentheses reaches 0x00010000, then the highlighted area can be saved via Binary → Save to file.

This is yet another payload that needs to be analyzed. Opening it with pestudio shows that it is a DLL with the original name kbdlv.dll, which is the name of the Latvian Keyboard Layout driver. However, the analysis of kbdlv.dll is deferred; at this point the role of t.wnry is understood.

The last file from the original list of files is f.wnry. Opening it with Notepad shows a path: C:\Users\REM\AppData\Local\Programs\Microsoft VS Code\resources\app\licenses\LICENSE-fra.rtf.WNCRY. Looking at the directory, there are a few files with the same extension, just different languages:

LICENSE-bul.rtf.WNCRY
LICENSE-chs.rtf.WNCRY
LICENSE-cht.rtf.WNCRY
LICENSE-deu.rtf.WNCRY
LICENSE-fra.rtf.WNCRY
LICENSE-esp.rtf.WNCRY
LICENSE-ita.rtf.WNCRY
LICENSE-hun.rtf.WNCRY
LICENSE-jpn.rtf.WNCRY
LICENSE-kor.rtf.WNCRY
LICENSE-ptb.rtf.WNCRY
LICENSE-rus.rtf.WNCRY
LICENSE-trk.rtf.WNCRY

In a clean installation of Windows with VS Code, these files are present without the WNCRY extension. They therefore do not seem to provide any direct purpose to the sample itself.
